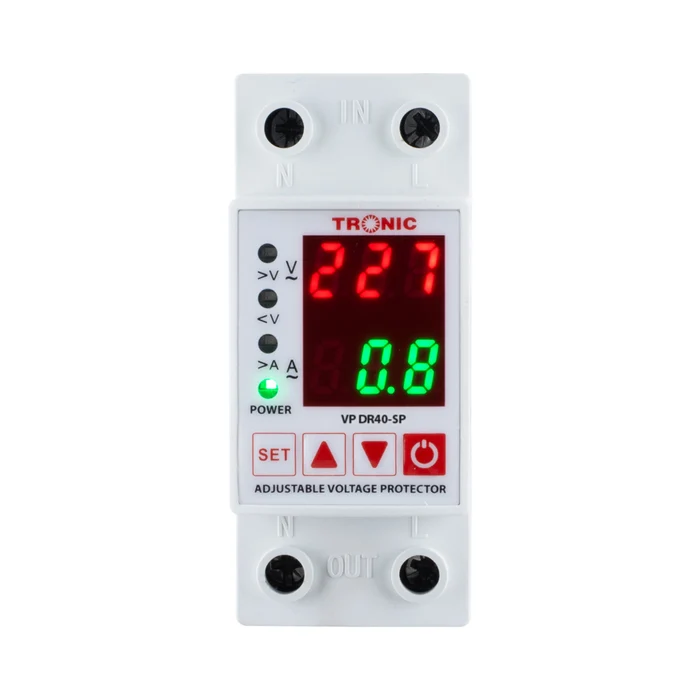

OVER AND UNDER VOLTAGE PROTECTION SMART ADJUSTABLE 40A SP

Description

Rated Voltage: 250V AC Rated Frequency: 50Hz / 60Hz Rated Current: 30A (Resistive, up to 6990W load) Protection Features: Overvoltage, undervoltage, overcurrent, loose connection & power surge protection Adjustable Settings: Voltage thresholds adjustable in 1V steps; current adjustable in 1A steps Startup Delay: Adjustable 2–512 seconds (default 180s) Overcurrent Action Time: Adjustable 2–10 seconds (default 2s) Material: Flame-retardant PC Color: Main body white Protection Level: IP20 Dimensions: 145.5mm × 100mm × 37.6mm Weight: Approx. 195g Connection Mode: Terminal wiring, supports wires up to 6mm² On-Off Mode: Button control Standard Compliance: BS EN60669-2-1 Warranty: 5 Years
